Steel Type

Steel Type: Slotted Type and Utility Type

Durable Technologies' Slotted Steel Type and Utility Steel Type will satisfy every industrial marking application where interchangeable information is required. We also manufacture steel marking type for every O.E.M. impact press including G.T. Schmidt®, Pannier, Matthews®, Hilti®, Columbia®, Automator®, can marking embossing type and others. Steel type holders can be supplied with a shank for press style use or a simple hand held version for use with a striking hammer.

Be sure to check out our Type Holders.

Slotted Type

  • Our heaviest duty all purpose steel type for the toughest applications in steel mills, forging mills, foundries and others
  • Slotted on one side to allow easy for orientation of character
  • Through hardened for durability
  • Standard character sizes shown below (other sizes are available)

Standard Sizes

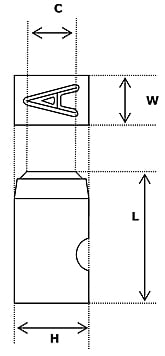

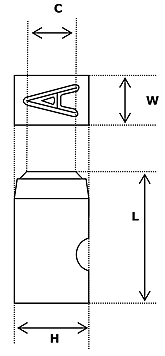

manual slotted

PART NUMBER CHARACTER SIZE (C) HEIGHT (H) WIDTH (W)* LENGTH (L)
05-0100 3/32” 7/16” 1/8” 1-1/4”
05-0116 1/8” 7/16” 3/16” 1-1/4”
05-0144 3/16” 7/16” 3/16” 1-1/4”
05-0208 1/4” 1/2” 1/4” 1-1/4”
05-0294 3/8” 5/8” 3/8” 1-1/4”

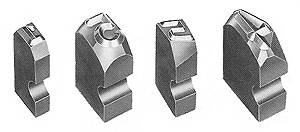

22a Slotted type






Blank Spacers

PART NUMBER DESCRIPTION
05-0100SP 7/16 X 1/8 WIDE X 1-1/8"
05-0116SP 7/16 X 3/16 WIDE X 1-1/8"
05-0208SP 1/2 X 1/4 WIDE X 1-1/8"
05-0294SP 5/8 X 3/8 WIDE X 1-1/8"



Utility Type

  • utility typeAll- purpose steel type
  • Interchangeable - standard blank size enables use of multiple character sizes with same holder
  • Durable - through hardened and annealed at hole for toughness
  • Standard character sizes shown below (other sizes are available)

Standard Sizes

PART NUMBER CHARACTER SIZE (C) HEIGHT (H) WIDTH (W)* LENGTH (L)
04-0114 1/16” 3/8” 1/16” 7/8”
04-0118 3/32” 3/8” 3/32” 7/8”
04-0120 1/8” 3/8” 1/8” 7/8”
04-0124 3/16” 3/8” 3/16” 7/8”
04-0126 1/4” 3/8” 1/4” 7/8”



Blank Spacers

PART NUMBER DESCRIPTION
04-0100-062 1/16" Utility Spacer
04-0100-093 3/32" Utility Spacer
04-0100-125 1/8" Utility Spacer
04-0100-188 3/16" Utility Spacer
04-0100-250 1/4" Utility Spacer



Be sure to check out our Type Holders.
