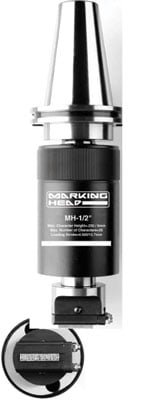

Inline CNC Marking Head

With the Inline CNC Marking Head it’s possible to mark the part while still setup in the machine, eliminating costly secondary operations, additional equipment and labor. Designed to work in conjunction with CNC machining and turning centers, as well as any manual turning, milling or drilling machines.

Alternative to Dorian Tool's comparable marking head (call us at 866-344-7721 for more information).

Features & Benefits:

The patented in-carousel design and compact size easily positions the in-tool magazine or turret without interfering with machine components or workpiece. Individual steel type and/or logos are available.

  • Holds up to (15) 1/16" interchangeable characters
  • Standard characters sizes include 1/16", 3/32",1/8", 5/32", and 3/16" (custom sizes also available)
  • Integrated-type holder
  • CNC marks in less than one second
  • Adjustable and uniform marking depth
  • Precise marking location repeatability
  • Positive locking
  • Easy type changeover
  • CNC mark steel, CNC mark aluminum, CNC mark titanium
  • Accepts blank spacers
  • Shank sizes: 20mm, 25mm, 3/4” and 1"



With the Inline CNC Marking Head, you'll be able to mark date codes, part numbers, company names, company logos plus any other alphanumeric text. This tool is not recommended for serializing (see DuraDot® or Dot Peen).
