Steel Type Holders

Press Style Holders for Slotted Type

  • Heavy duty for long life
  • Made from shock resistant tool steel
  • For use with heavy duty Slotted Type
  • Commonly used together with our line of Impact Presses
  • Other pocket sizes available
Slotted Type Press Holder
POCKET WIDTH POCKET HEIGHT
7/16" 1/2" 5/8"
1/2" 08-PH438-0500 08-PH500-0500 08-PH625-0500
1” 08-PH438-1000 08-PH500-1000 08-PH625-1000
1-1/2” 08-PH438-1500 08-PH500-1500 08-PH625-1500
2” 08-PH438-2000 08-PH500-2000 08-PH625-2000
2-1/2” 08-PH438-2500 08-PH500-2500 08-PH625-2500
3” 08-PH438-3000 08-PH500-3000 08-PH625-3000


Standard Shanks

Standard Shank for Durable Technologies Presses
PART NO. DESCRIPTION
20-161004 Press Shank, 6.0mm dia. X 27mm with 5/8-18 UNF thread for MC11/MC19 Presses
20-161005 Press Shank, 10.0mm dia. X 38mm with 5/8-18 UNF thread for MC18/MC21 Presses
20-161006 Press Shank, 16.0mm dia. X 48mm with 5/8-18 UNF thread for MC30/MC35 Presses

*Other shank sizes are available.

M-E-Conomy Hand Held Holders

slotted type holder
  • Made from shock resistant tool steel
  • For use with heavy duty Slotted Type
  • Type holder is 5” long
  • Other pocket sizes available
  • Commonly used together with our O.E. Marking Hammers
POCKET WIDTH POCKET HEIGHT
7/16” 1/2” 5/8”
1” 08-0100M-1-II 08-0100M-1-I 08-0100M-1-CE
1-1/2” 08-0100M-1-NN 08-0100M-1-N 08-0100M-1-CH
2” 08-0100M-1-TT 08-0100M-1-T 08-0100M-1-CL
2-1/2” 08-0100M-1-YY 08-0100M-1-Z 08-0100M-1-CO
3” 08-0100M-1-16 08-0100M-1-Z5 08-0100M-1-CT
3-1/2” --------- --------- 08-0100M-1-CY

Type Retaining Pins

PART NO. DESCRIPTION NOTES
08-0100C 5/32” Wire For Holders with 7/16 & 1/2” Wide Pocket
08-0100D 3/16” Wire For Holders with 5/8” Wide Pocket



M-E-Conomy Sledge Holders

  • M E Conomy Sledge Marking Hammer DiesHeavy duty for long life
  • Made from shock resistant tool steel
  • Fiberglass handle with rubber grip
  • For use with heavy duty Slotted Type
  • Type holder is 5” long
  • Other pocket sizes available
  • Commonly used together with our O.E. Marking Hammers
POCKET WIDTH POCKET HEIGHT HANDLE LENGTH
7/16” 1/2” 5/8”
1” 08-0400SM-1-II 08-0400SM-1-I 08-0400SM-1-CE 16”
1-1/2” 08-0400SM-1-NN 08-0400SM-1-N 08-0400SM-1-CH 16”
2” 08-0400SM-1-TT 08-0400SM-1-T 08-0400SM-1-CL 16”
2-1/2” 08-0400SM-1-YY 08-0400SM-1-Z 08-0400SM-1-CO 24”
3” 08-0400SM-1-16 08-0400SM-1-Z5 08-0400SM-1-CT 32”
3-1/2” --------------- --------------- 08-0400SM-1-CY 32”



Utility Type Holder for Presses

  • Utility Press Holder 04 UPH 1125Heavy duty for long life
  • Made from shock resistant tool steel
  • For use with Interchangeable Utility Type
  • Commonly used together with our line of Impact Presses
  • 5/8-18 UNF tapped hole for shank
  • Other pocket sizes available
PART NO. DESCRIPTION
04-UPH-0500 Press Holder with 0.5" x 3/8" Pocket
04-UPH-0625 Press Holder with 0.625" x 3/8" Pocket
04-UPH-0750 Press Holder with 0.750" x 3/8" Pocket
04-UPH-0875 Press Holder with 0.875" x 3/8" Pocket
04-UPH-1000 Press Holder with 1" x 3/8" Pocket
04-UPH-1125 Press Holder with 1.125" x 3/8" Pocket
04-UPH-1250 Press Holder with 1.250" x 3/8" Pocket
04-UPH-1375 Press Holder with 1.375" x 3/8" Pocket
04-UPH-1500 Press Holder with 1.500" x 3/8" Pocket
04-UPH-1625 Press Holder with 1.625" x 3/8" Pocket
04-UPH-1750 Press Holder with 1.750" x 3/8" Pocket
04-UPH-1875 Press Holder with 1.875" x 3/8" Pocket
04-UPH-2000 Press Holder with 2" x 3/8" Pocket
04-UPH-2500 Press Holder with 2.5" x 3/8" Pocket
04-UPH-3000 Press Holder with 3" x 3/8" Pocket

Utility Type Hand Held Holders

PART NO. DESCRIPTION
04-UHH-0500 Holder with 0.5" x 3/8" Pocket
04-UHH-0625 Holder with 0.625" x 3/8" Pocket
04-UHH-0750 Holder with 0.750" x 3/8" Pocket
04-UHH-0875 Holder with 0.875" x 3/8" Pocket
04-UHH-1000 Holder with 1" x 3/8" Pocket
04-UHH-1125 Holder with 1.125" x 3/8" Pocket
04-UHH-1250 Holder with 1.250" x 3/8" Pocket
04-UHH-1375 Holder with 1.375" x 3/8" Pocket
04-UHH-1500 Holder with 1.500" x 3/8" Pocket
04-UHH-1625 Holder with 1.625" x 3/8" Pocket
04-UHH-1750 Holder with 1.750" x 3/8" Pocket
04-UHH-1875 Holder with 1.875" x 3/8" Pocket
04-UHH-2000 Holder with 2" x 3/8" Pocket

Utility Holder Character Capacity

These holders use 1/16”, 3/32”, 1/8”, 3/16” & 1/4” utility type characters interchangeably. Multiply the number of characters by the character size to determine the correct pocket width.

Examples:

  • Six 3/16” characters require a pocket that is 1.125” wide
  • Ten 1/8” characters require a pocket that is 1.25” wide

    (Letter “I” and punctuation on ½ thickness blanks for larger character sizes)

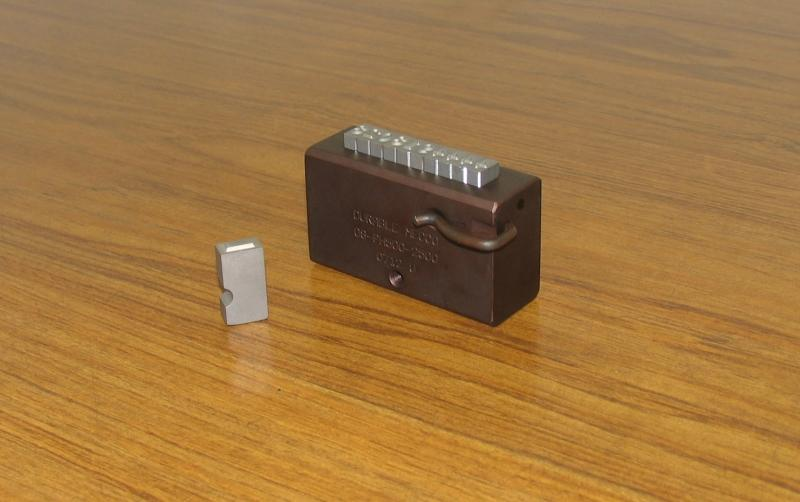

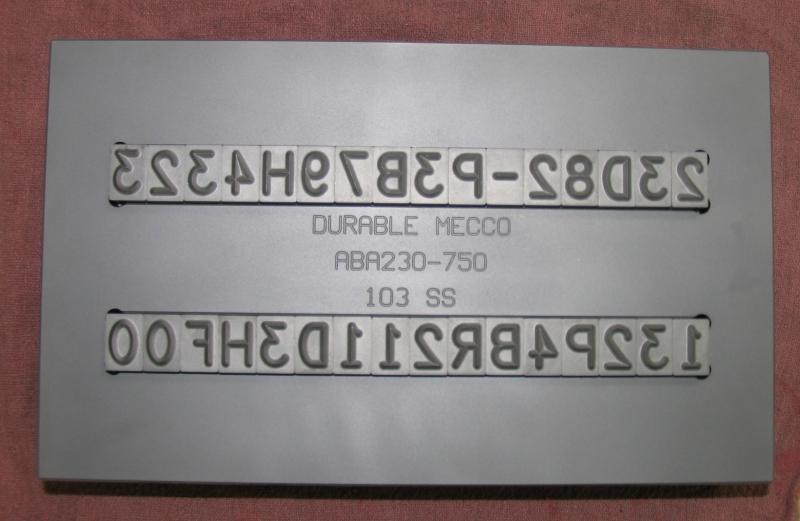

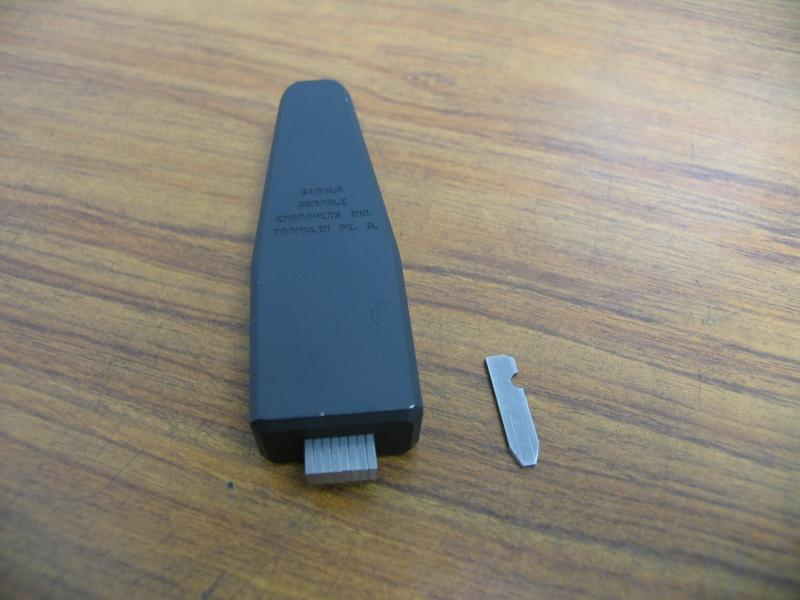

Type Holder Gallery

Steel type and steel type holders are manufactured to your specifications.  We use only the best tool grade hardened steel to make these long lasting and safe steel type and steel type holders.  Click the image to enlarge.
