Roll Marking and Roll Marking Tools Explained

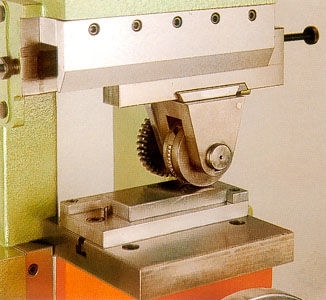

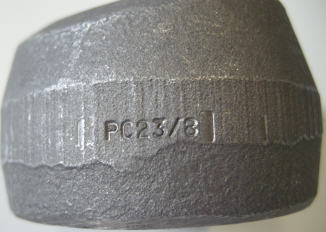

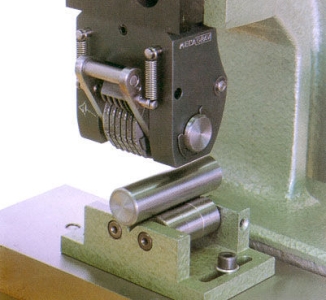

What is Roll Marking? Roll marking is a type of marking method that uses a roll die mounted on a roll marking press,...

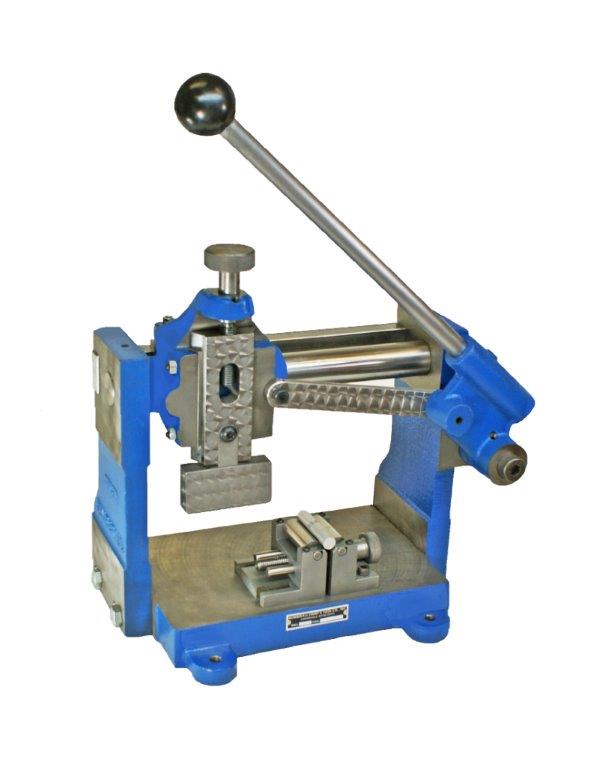

Roll Marking Press
- Ideal for light-duty marking of cylindrical/round parts with an even depth of impression
- Stamp up to 1/4” tall characters into aluminum and 5/32” characters into mild steel
- Compatible with numbering heads, type holders and custom steel dies
- Mark parts from 3/8" to 1-5/8" diameter (oversized endplates available for larger diameter parts - up to 5-7/8" diameter)
- Adjustment knob for positive marking depth adjustment; move in or out for desired stamping depth
- Option: Adjustable holding fixture
- Compact benchtop size (80 lbs. approximate weight)
- Footprint = 10.5" x 17" x 20" (WxLxH)
.jpg?width=603&height=768&name=Model_301_FINAL_edited-1_(2).jpg)
- Ideal for light-duty marking of cylindrical/round parts with an even depth of impression

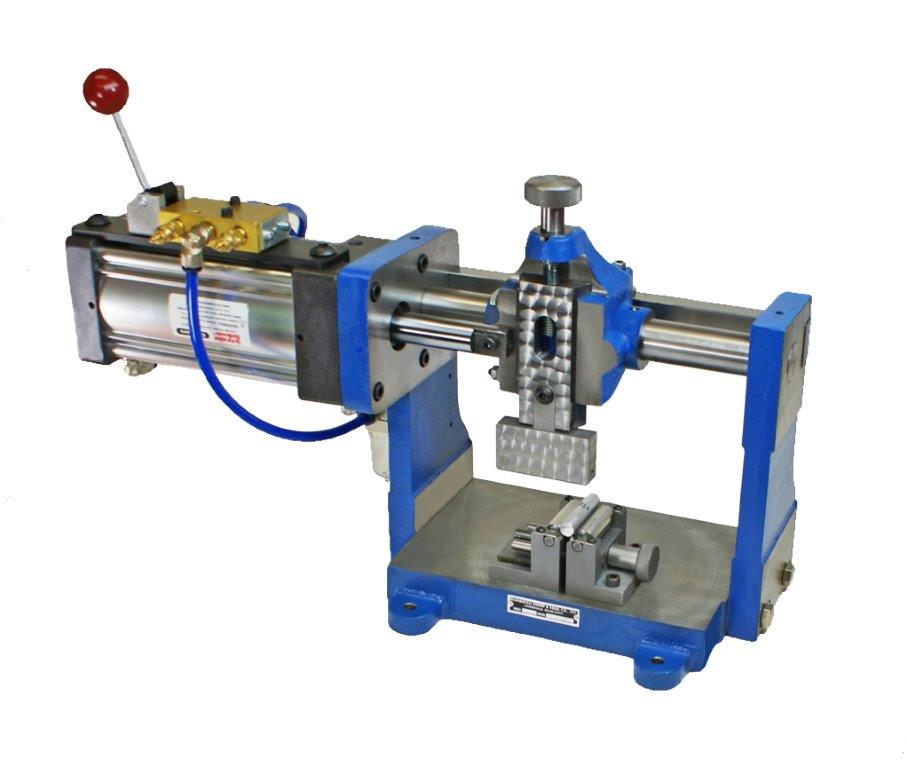

- The pneumatic model is better suited for high-production applications
- Stamp up to 1/4” tall characters into aluminum and 5/32” characters into mild steel
- Compatible with numbering heads, type holders and custom steel dies
- Mark parts from 3/8" to 1-5/8" diameter (oversized endplates available for larger diameter parts - up to 5-7/8" diameter)
- Adjustment knob for positive marking depth adjustment; move in or out for desired stamping depth
- Includes control valve
- Options: Adjustable holding fixture, lubricator, filter, regulator, gauge, and two-hand tripping attachment
- Compact benchtop size (95 lbs. approximate weight)
- Footprint = 10.5" x 26" x 18.5" (WxLxH)
