Steel Hand Stamps

hand stamps

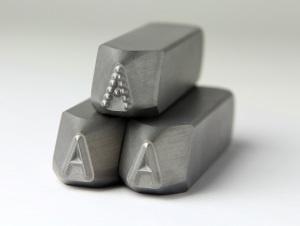

Hevi-Bevl Steel Hand Stamps

Sharp face Gothic character steel hand stamps. Cold forged steel hand stamps provide extra-long service life. Made from a special grade of tool steel, they resist spalling and mushrooming.

CHARACTER SIZE PART NUMBER 9-PIECE FIGURE 10-PIECE FIGURE 26-PIECE LETTER
1/8” 01-0210 01-0210/9SET 01-0210/10SET 01-0210/26SET
3/16” 01-0214 01-0214/9SET 01-0214/10SET 01-0214/26SET
1/4” 01-0218 01-0218/9SET 01-0218/10SET 01-0218/26SET
3/8” 01-0224 01-0224/9SET 01-0224/10SET 01-0224/26SET
1/2” 01-0228 01-0228/9SET 01-0228/10SET 01-0228/26SET


Stress-Less (Low Stress) Full Character Steel Hand Stamps

Round face full Gothic character steel hand stamps for low stress marking requirements.

stress less1

CHARACTER SIZE PART NUMBER 9-PIECE FIGURE 10-PIECE FIGURE 26-PIECE LETTER
1/8” 01-0306 01-0306/9SET 01-0306/10SET 01-0306/26SET
3/16” 01-0312 01-0312/9SET 01-0312/10SET 01-0312/26SET
1/4” 01-0314 01-0314/9SET 01-0314/10SET 01-0314/26SET
3/8” 01-0320 01-0320/9SET 01-0320/10SET 01-0320/26SET


Stress-Less (Low Stress) Dot Character Steel Hand Stamps

Round face dot Gothic character steel stamps for low stress marking requirements.

dot stress less2

CHARACTER SIZE PART NUMBER 9-PIECE FIGURE 10-PIECE FIGURE 26-PIECE LETTER
1/8” 01-0308 01-0308/9SET 01-0308/10SET 01-0308/26SET
3/16” 01-0313 01-0313/9SET 01-0313/10SET 01-0313/26SET
1/4” 01-0316 01-0316/9SET 01-0316/10SET 01-0316/26SET
3/8” 01-0321 01-0321/9SET 01-0321/10SET 01-0321/26SET

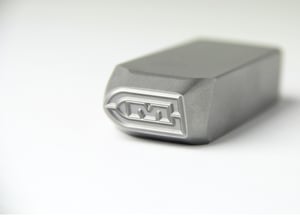

Custom Steel Hand Stamps

logo stamps3Simple or complex text or logos and designs made-to-order. Sizes range from tiny steel hand stamps to mark jewelry to large steel hand stamps to mark steel slabs.



Inspection Symbol Steel Hand Stamps

Simple or complex text or logos and designs made-to-order. Sizes range from tiny steel hand stamps to mark jewelry to large steel hand stamps to mark steel slabs.

Choose from 672 standard symbols to identify specific inspectors or operators.

inspection stamps1Click here for Symbol Charts

INSPECTION PIECEWORK SYMBOLS STANDARD DATE CODE SYMBOLS SYMBOL SIZE
03-0C511-*** 03-0C513A-** 1/8”
03-0E511-*** 03-0E513A-** 3/16”
03-0F511-*** 03-0F513A-** 1/4”
03-0H511-*** 03-0H513A-** 3/8”


* Replace "***" with symbol number from the chart



Line Steel Hand Stamps

Sharp face gothic text in one straight line. Custom fonts, engraving styles and multiple line stamps are also available.

Common sizes include: 1/16”, 3/32”, 1/8”, 3/16”, 1/4”



letter number stamps

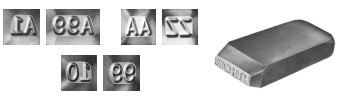

Letter-Number Steel Hand Stamps

Sharp face gothic text, typically sold in sequence.
Common combinations:
AA, AB, to ZZ
A1, A2, to Z99
00, 01, to 99
Common sizes include: 3/32”, 1/8”, 3/16”, 1/4”, 3/8”



Border Steel Hand Stamps*

border stamps

Sharp face gothic text, typically sold in sequence, contained within a border.
Common character combinations:1 to 99, and A to Z
Common border sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”
Border styles: circle, square, triangle, hexagon, octagon, oval, diamond



APIQ Steel Hand Stamps*

apiq stampsCommon sizes: 1/8”, 3/16”, 1/4”, 3/8”, 1/2”, 5/8”, 3/4”, 1”
Engraving styles:
Sharp FaceRound Face (Shown in picture)
Sharp Face DotRound Face Dot



452 Style Font Steel Hand Stamps

452 style stamps

All characters have unique shapes so identification can be made with only top or bottom of character. Typically only provided as 0-9.

CHARACTER SIZE PART NUMBER 9-PIECE FIGURE 10-PIECE FIGURE
1/8” 01-0802 01-0802/9SET 01-0802/10SET
3/16” 01-0806 01-0806/9SET 01-0806/10SET
1/4” 01-0810 01-0810/9SET 01-0810/10SET
3/8” 01-0814 01-0814/9SET 01-0814/10SET


Reverse Steel Hand Stamps

Steel hand stamps for making molds or dies

Common Sizes

CHARACTER SIZE PART NUMBER 9-PIECE FIGURE 10-PIECE FIGURE 26-PIECE LETTER
1/8” 01-0112 01-0112/9SET 01-0112/10SET 01-0112/26SET
3/16” 01-0116 01-0116/9SET 01-0116/10SET 01-0116/26SET
1/4” 01-0120 01-0120/9SET 01-0120/10SET 01-0120/26SET
3/8” 01-0126 01-0126/9SET 01-0126/10SET 01-0126/26SET









logo stamps1



Round Face Reverse

logo stamps2





Flat Face Reverse

Also available:

Warning:Wear safety goggles. Strike squarely. Avoid glancing blows. Never strike steel stamps against another striking tool. Striking hard surface can cause chipping possibly resulting in eye injury. Discard immediately if chipping, mushrooming or denting occurs.

*Examples are for illustrative purposes only. Actual design may vary. Approval proof can be supplied before manufacturing upon request.
