Durable Technologies’ dot peen marking systems, often referred to as pin stamp marking, is a direct part marking process used to mark alpha-numeric characters, logos, 2D data matrix barcodes and much more in precise, low stress dot patterns.

Dot peen marking technology is one of the most versatile marking solutions on the market today. Dot peen marking equipment capabilities range from simple nameplate requirements to completely integrated solutions for marking directly onto fabricated components in-line.

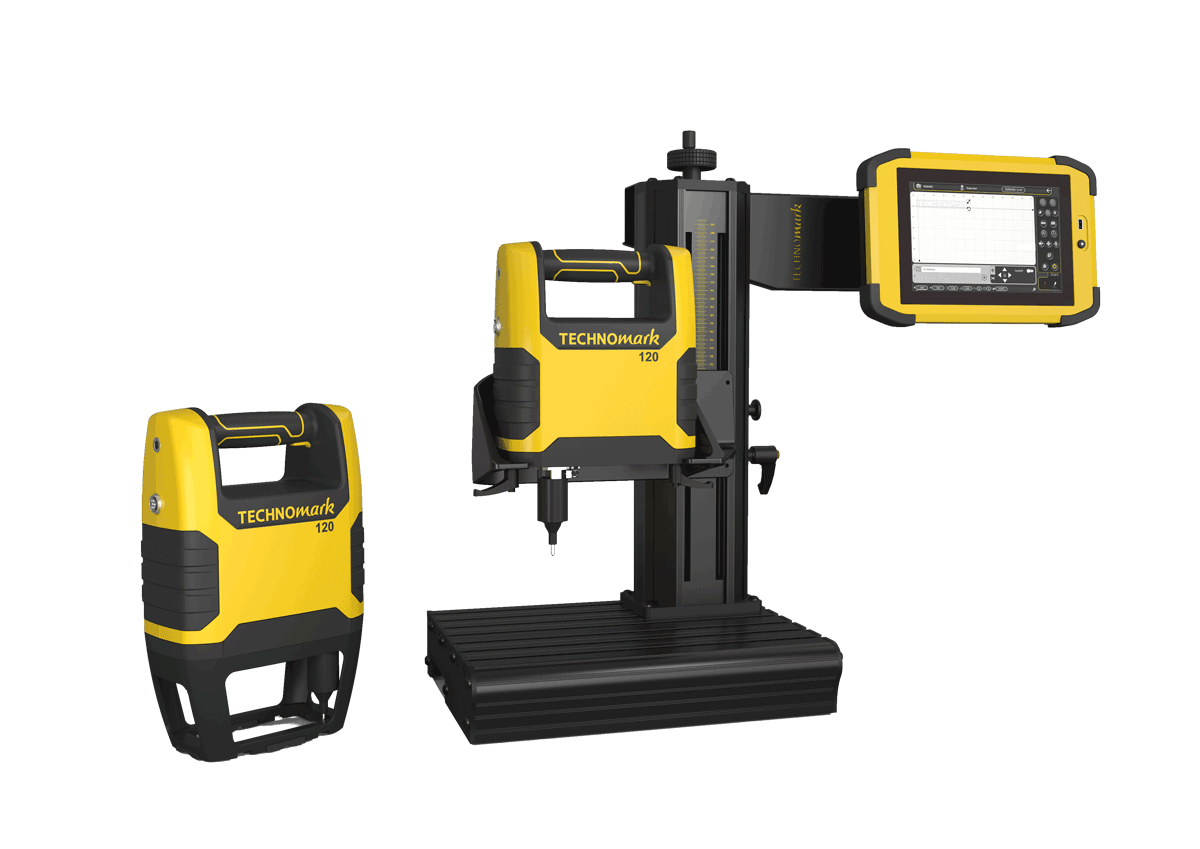

Durable Technologies' benchtop model dot peen offers a versatile marking station for small to medium size parts and can be used to mark a wide range of materials from plastics to metals up to 62 Hrc. These electrically driven dot peen units require no air supply to operate making them a low cost investment with few consumables and little maintenance.

Each e9 series dot peen marking system comes with a fully programmable electronic controller that includes an industrial membrane keyboard – no PC required! These systems are ideal for marking alpha-numeric text and logos and best suited for low to medium volume marking requirements.

The ec9 benchtop model is designed for marking applications involving small to medium size parts, including many types of materials from plastics to metals up to 62 Hrc. Available with many options, including a rotary D axis for holding round parts (up to 70mm O.D. and 90mm I.D. and 6 lbs.), the ec9 marking machine is suitable for a wide variety of marking requirements.

It features a graphical screen and an industrial membrane keyboard directly on the machine. Fully self-contained, its integrated software is extremely user friendly with self explanatory icons.

Benefits of e9 Series Benchtop Dot Peen Marking Systems:

• Marking of all kinds of materials up to 62 Hrc
• Electrically driven - No air supply required!
• Low cost of ownership - Few consumables
• Robust and reliable - Steel / cast iron column & base
• High performance - High speed
• Simple and user-friendly - Powerful integrated software
• Easy programming
• Suitable for Aerospace applications (creates very little stress on the parts being marked)

Options For Durable Technologies Dot Peen Marking Systems:

• Nameplate and/or tag holder/fixture
• Rotary attachment
• Barcode reader
• Extended column
• Rotated column 180°
• Extended maintenance kit

Our e8 series dot peen marking systems comes with a stand-alone controller that includes a sealed keyboard. This controller allows the e8 series of bench-model, portable and I-series integrated heads to be easily interfaced with production lines. Communications can be sent via RS232 or USB ports from a PC or host computer to the marking system. e8 dot peen marking systems are ideal for marking alpha-numeric text, logos and 2D data matrix barcodes and are best suited for medium to high volume marking requirements.

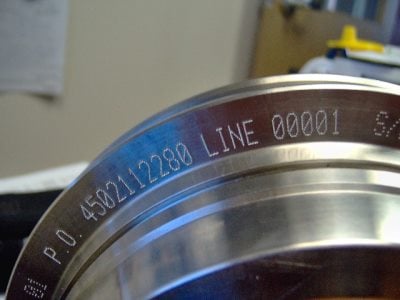

The e8-c153 benchtop model can mark many types of materials from plastics to metals up to 62 Hrc. The electromagnetic stylus technology enables to mark parts with different shapes and different surfaces (flat surfaces, concave or convex surfaces, circular surfaces, rough or machined surfaces) and only requires one source of energy.

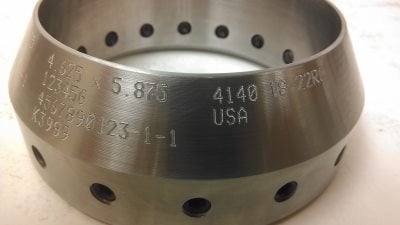

The heavy duty rotary axis option (D axis) enables the operator to mark around cylindrical parts up to 35 Kg.  Extremely accurate and ruggewd, the c153 is the ideal machine for precision marking and high volume marking requirements.

Benefits of e8-c153 Series Benchtop Dot Peen Marking Systems:

• Integrated counter
• Marking window 160mm x 100mm
• LED lighting of the marking area
• Speed and accuracy
• Robust and reliable

E8 electronic controller:

• Fully programmable
• 2D data matrix marking
• Angular and circular marking
• Marking history and auto diagnostic functions
• Standalone operation (no PC required)
• Industrial membrane keyboard
• Fully enclosed controller (IP40)
• Large graphical screen
• High volume marking capability

Options For Durable Technologies Dot Peen Marking Systems:

• Tag feeder
• Data matrix and bar code scanner
• Extended maintenance kit
• Rotary D axis
• Nameplate and/or tag holder/fixture
