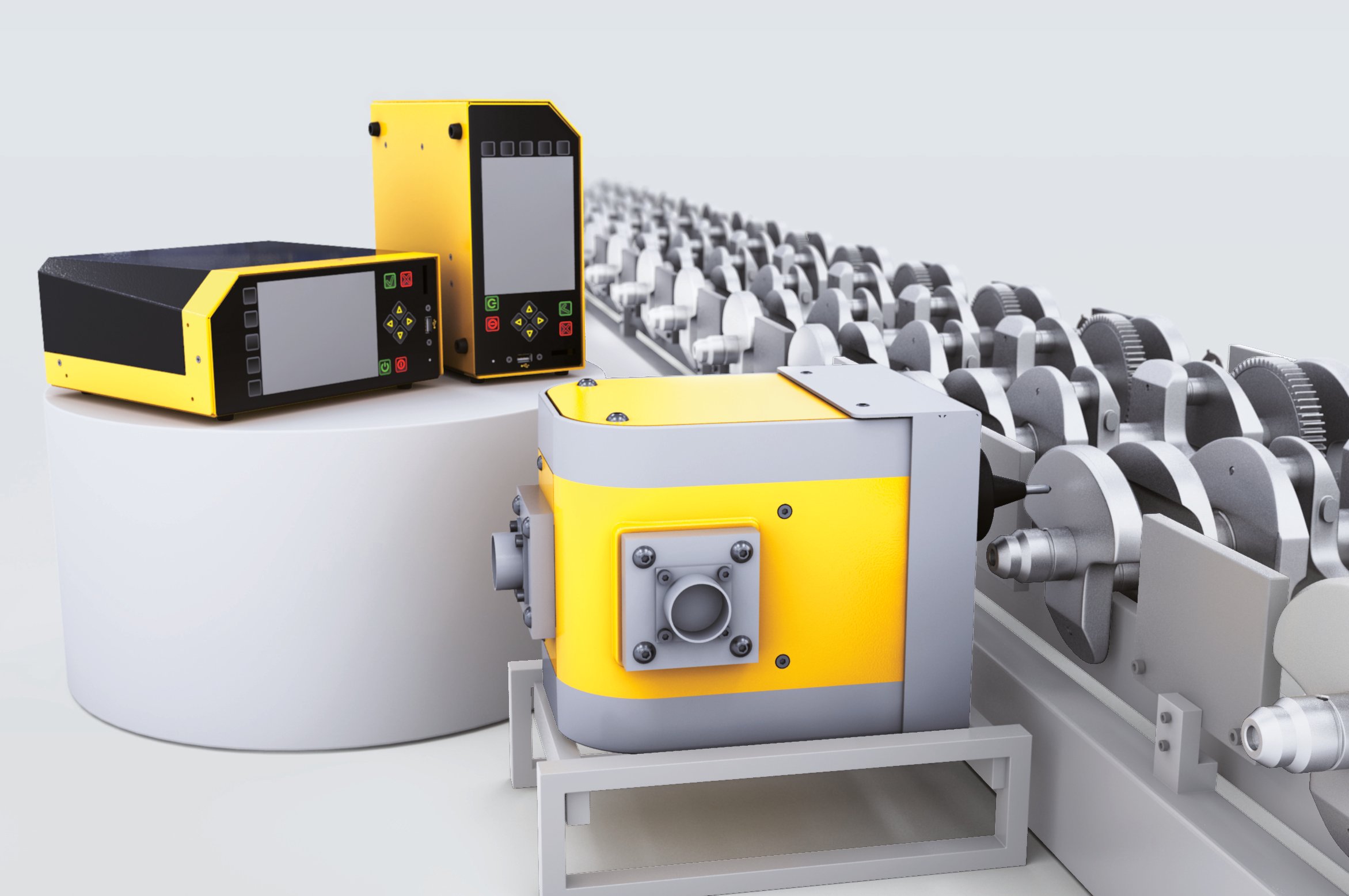

Durable Technologies' integrated marking heads are designed to be used in automated assembly lines or fully-automated production lines. These inline dot peenn marking units are easily integrated, high performance marking systems are proving to be an invaluable tool for direct part marking in high volume production environments. These machines can also be customized for specific applications, with camera-oriented reading systems to delvier a turn key traceability system for part identification.

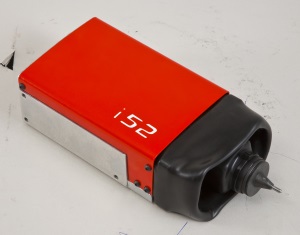

The e8-i52 dot peen marking ma
chine is extremely compact. It is designed to be easily integrated in industrial environment (it has 3 mounting surfaces to ease integration). You will quickly and easily be able to mark parts of various shapes, surface conditions and materials. Its robust design (patent pending) is protected with rubber bellowsfor harsh environments. It is very fast and can mark all type of materials: plastics to 62 Hrc heat treated steels. The electromagnetic stylus technology allows users to permanently mark parts of various shapes and surface conditions (flat, concave, convex, circular, “as cast” or machined…) and requires only one standard single phase power supply (no air).

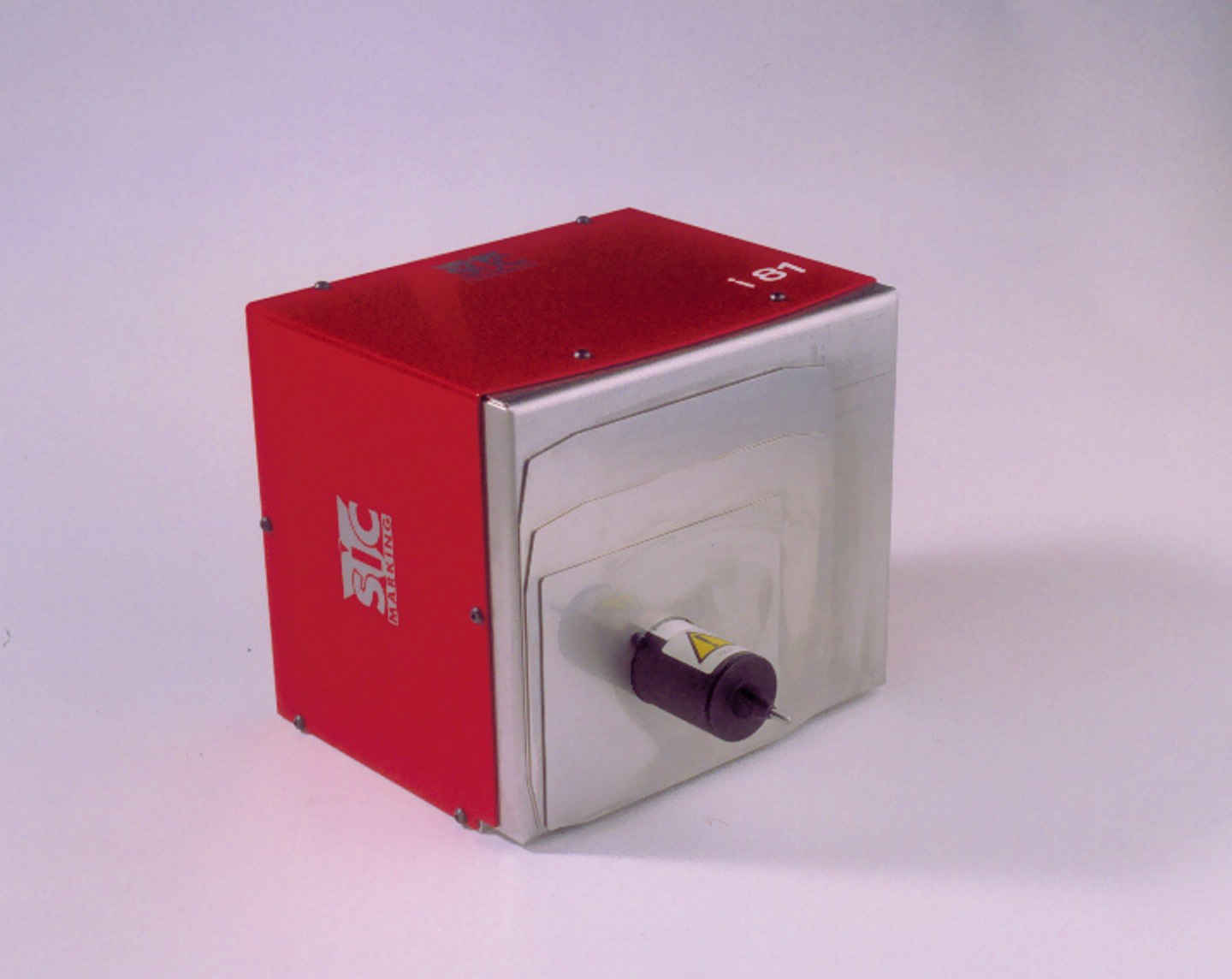

The e8-i81 dot peen ma
rking machine is designed to be integrated into production lines in industrial environments. It can mark all type of materials from plastics to 62Hrc heat treated steels. This modular unit is robust and reliable and it can easily be adapted to various applications and generate high precision marks. Stainless steel shutters protect the internal components.
Electromagnetic dot marking technology allows manufacturers to permanently mark parts of various shapes and surface conditions (flat, concave, convex, circular, “as cast” or machined…) and requires only one standard single phase power supply (no air).

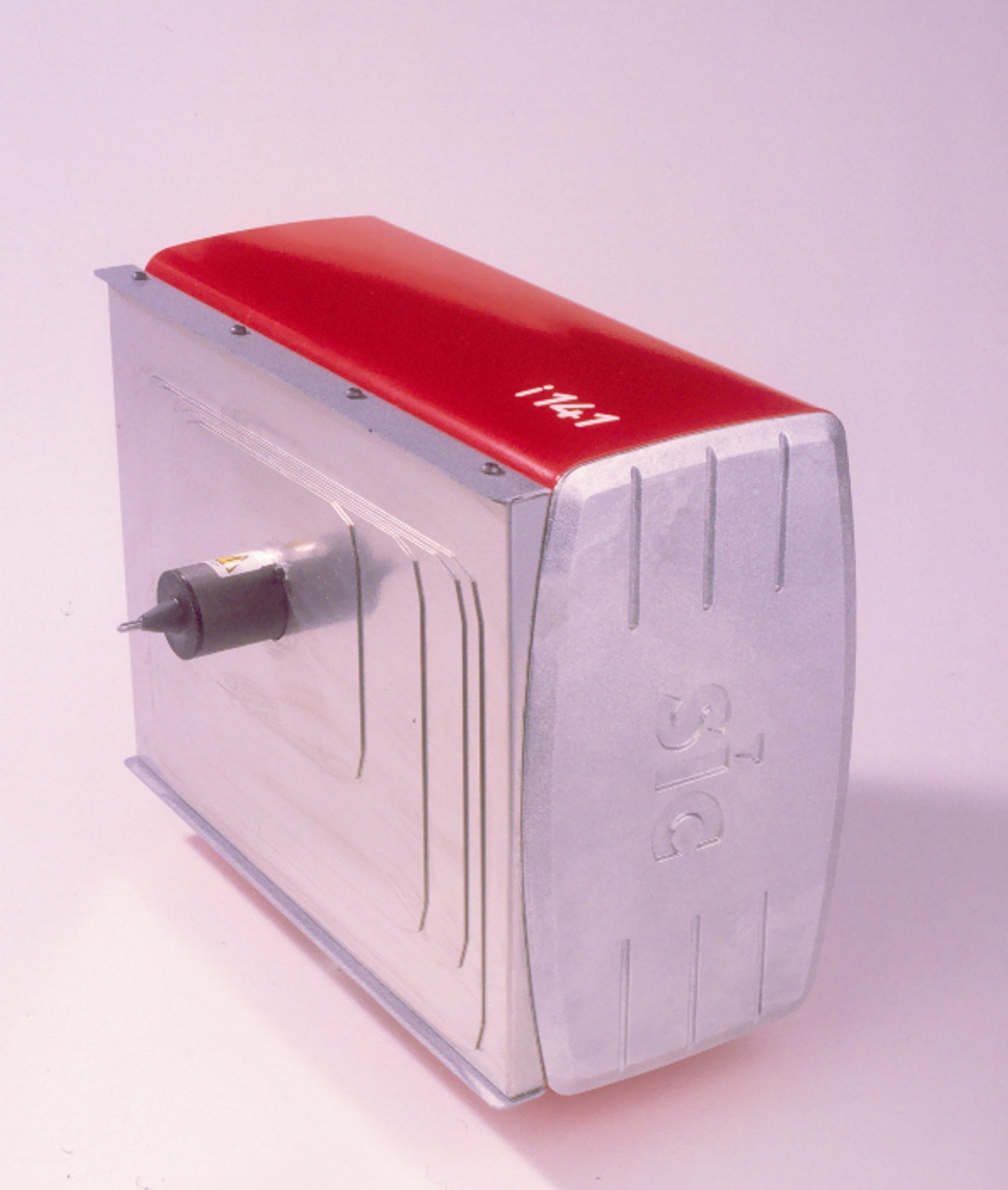

The e8-i141 dot peen marking machine is designed to be integrated into productio
n line in industrial environment. It offers a large marking window and can mark all types of materials ranging from plastics to 62Hrc heat treated steels.
This modular unit is robust and reliable and it can easily be adapted to various applications and generate high precision marks. Stainless steel shutters protect the internal components from harsh production environments. The electromagnetic dot marking technology allows the unit to permanently mark parts of various shapes and surface conditions (flat, concave, convex, circular, “as cast” or machined…) and requires only one standard single phase power supply (no air).
Options For Integrated Dot Peen Systems:
- Z axis stroke 50 mm / 2 inches to 250 mm / 9.8 inches
- Autosensing
- Offset stylus assemby
- Bar-code and Data Matrix reader
- Multi stylus system
- Deep marking
- Stylus and guides
- Maintenance kit
- PC-based software
