There are times when a traditional Dot Peen marking station is not possible due to the size or orientation of the part. For these situations Durable Technologies offers a number of portable dot peen markers to solve your direct marking application.

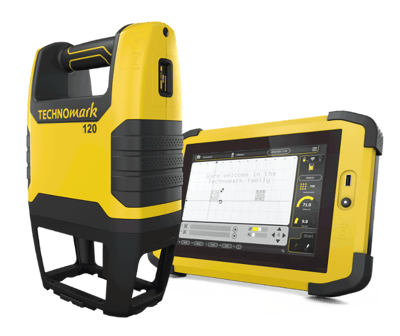

Portable, hand-held marking systems are suited for marking heavy materials or parts too large to be handled easily. Lightweight and ergonomic but still rugged, these machines can mark parts with surface hardness up to 62 Hrc.
The e9 controller features a graphical screen and an industrial membrane keyboard directly on the machine. Fully self-contained, its integrated software is extremely user friendly with self explanatory icons.
Benefits of portable dot peen marking solutions from Durable Technologies:
- Marking of heavy or difficulty accessible parts, up to 62Hrc
- Electromagnetic dot marking stylus assembly - No air supply required
- Low cost of ownership - No consumables
- Robust and reliable - Cast aluminium body and handle
- High performance - Constant precision and quality
- Simple and user-friendly
- Lightweight, Mobile, ergonomic and flexible
- Electronic controller is fully programmable
Options For Portable Dot Peen Systems:
- Plate holder
- Cart / battery
- Bar-code reader
- Hook and balancing system
- Maintenance kit
- Customized front plates (magnetic clamping)
Click Here to Download the Durable Technologies' Dot Peen Marking Systems brochure
 |
 |

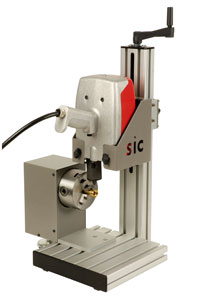

| ec9 column & base |

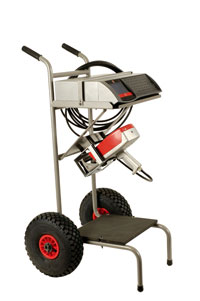

ec9 cart |
 |
 |
 |
| p62 marker |

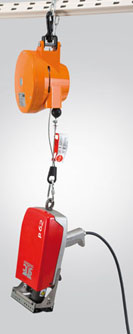

p62 with hook |
p62 marker |
