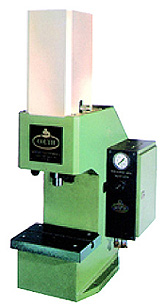

This powerful air/hydraulic press delivers 23 tons of force with only 110 psi of air pressure. It combines a very rapid air-powered approach stroke with a short intensified power stroke from an integrated hydraulic booster cylinder. The power stroke activates automatically when the tool touches the work piece. With an 8” throat opening, the approach stroke can be as long as 1-1/4”. The intensified power stroke is 1/16” (2mm) to 11/64” (4.5mm).
Characteristics:
- Adjusting air pressure to the press immediately alters output within the range of 11.5 to 23 tons.
- Rapid approach stroke plus intensified power stroke.
- Very low noise level.
- Oil pressure is intensified by the air pressure - in proportion to length of time air pressure is applied.
- Low maintenance with few moving parts.
